Pressure Vessel Design: Technical Comparison Between ASME VIII Division 1 and Division 2

In the field of mechanical design for pressure vessels, selecting the appropriate applicable code is a critical factor to ensure structural safety, operational efficiency, and resource optimization.

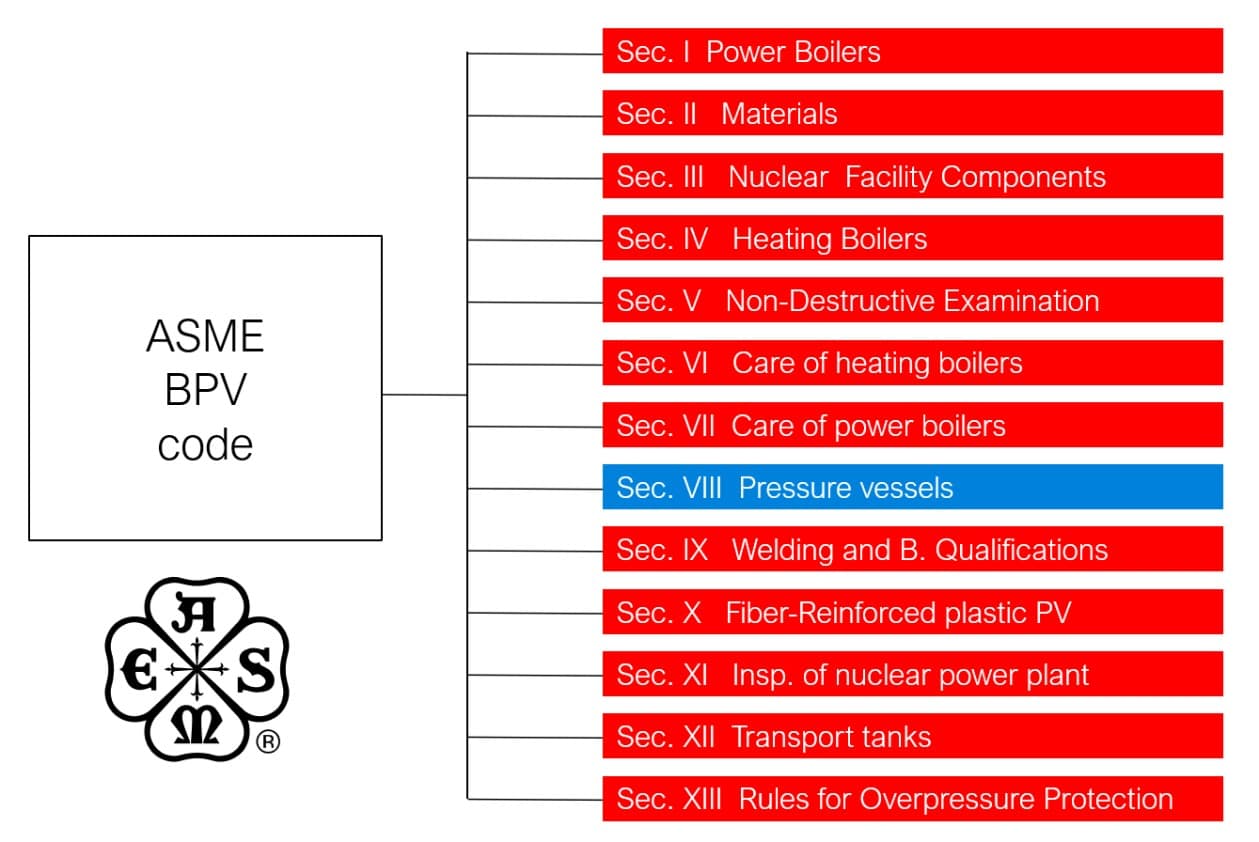

Within the Boiler and Pressure Vessel Code (BPVC), Section VIII establishes the criteria for the design, fabrication, inspection, and testing of industrial pressure vessels.

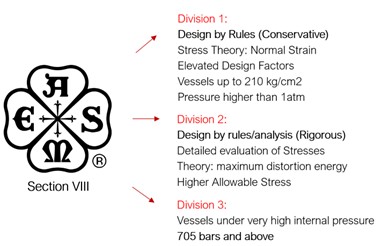

This section is divided into three main parts, with Division 1 and Division 2 being the most widely used in the industry. Although both pursue the same goal—equipment safety—they do so through different design philosophies, which affect the methodology, safety factors, and final component thickness. In this article, we review the key criteria for choosing between one or the other.

The key differentiating elements between both divisions are presented below in a comparative and practical manner, focusing on three technical pillars:

1. Design Philosophy: DBR vs. DBA
2. Design Factors and Allowable Stresses
3. Division 2 Part 5 Analytical Approach

1. Design Philosophy: DBR vs. DBA

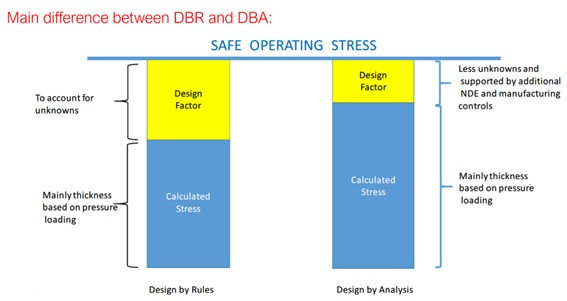

The first essential difference between the two divisions lies in their design philosophy. According to the provided material, the starting point is the distinction between DBR (Design by Rules) and DBA (Design by Analysis).

ASME VIII Division 1 vs Division 2

• Division 1 is based on Design by Rules (DBR), which relies on prescriptive formulas provided by the Code for typical geometries. This approach is conservative and straightforward to apply, reducing both complexity and calculation time.
• Division 2 also incorporates DBR (in Part 4), but it allows and promotes Design by Analysis (DBA), which validates structural integrity through more advanced analytical methods, verifying specific failure modes. This approach provides greater structural fidelity and more efficient use of materials.

In practice, DBR under Division 1 is suitable for standard equipment and moderate stress levels, while DBA under Division 2 is preferable for high pressures, significant external loads, cyclic conditions, or large diameters and/or thicknesses.

2. Design Factors and Allowable Stresses (ASME II-D)

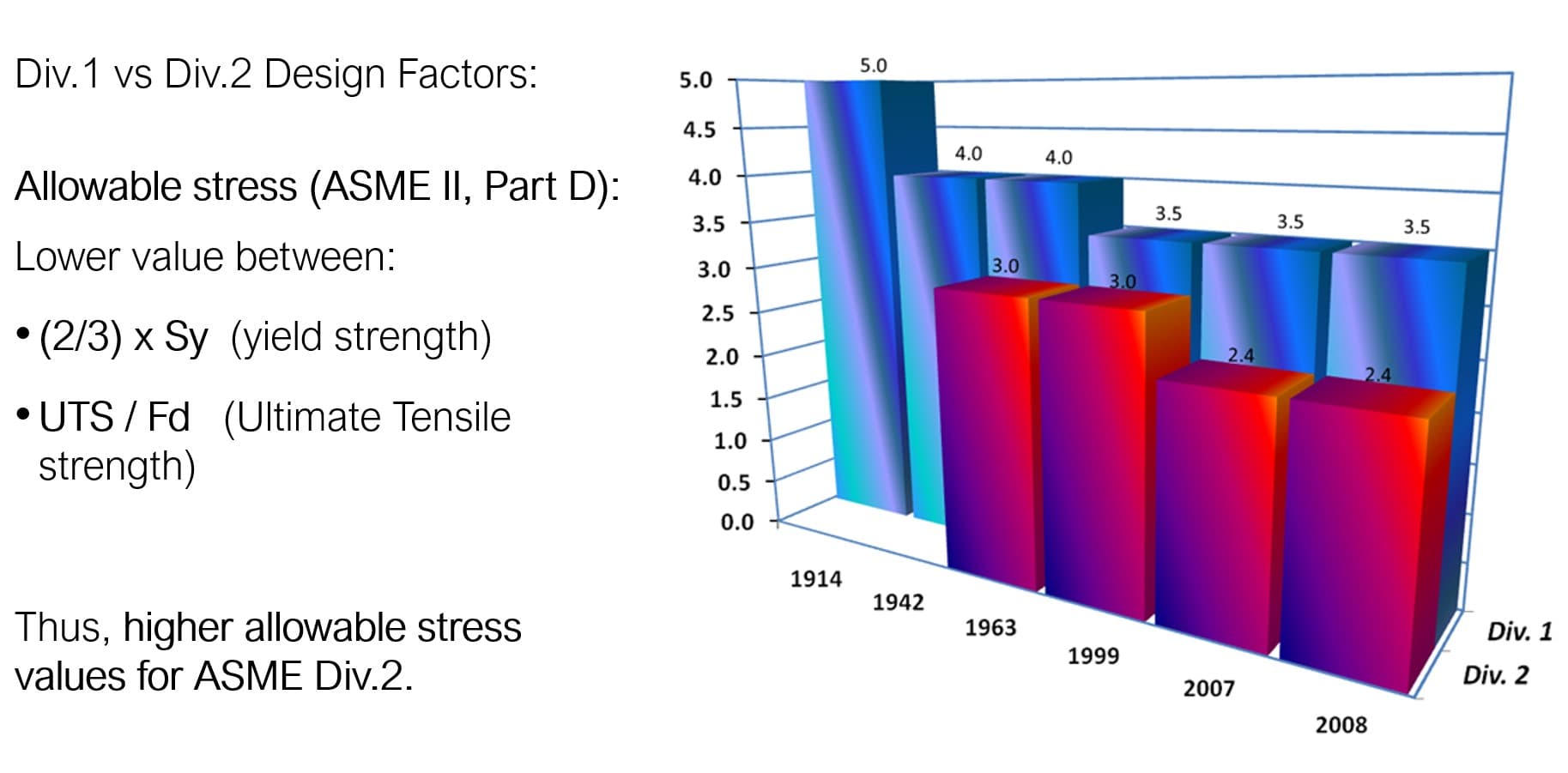

The second key difference is quantitative: allowable stresses. As outlined in the presentation slides, these values are derived from ASME Section II, Part D:

In Division 1, these criteria are combined with more conservative design factors, which limit the allowable stress values.
In Division 2, the applied factors are less restrictive. As a result:

• For the same material, Division 2 allows higher allowable stresses, leading to reduced required thicknesses.
• Based on our engineering experience, this difference can result in significant and economically relevant thickness reductions in large pressure vessels.

3. Part 5 as the Foundation of the DBA Approach in Division 2

The third pillar is found in ASME VIII-2, Part 5, which forms the technical core of the Design by Analysis (DBA) approach.
This section establishes:

• Detailed stress classification rules
• Criteria for plasticity, ratcheting, buckling, and fatigue
• Rules for finite element analysis (FEA)-based calculations

This level of rigor explains why the Code permits higher allowable stresses in Division 2: failure modes are explicitly verified, unlike in DBR, where they are implicitly assumed.

Common Project Errors

In audits, design reviews, and consulting services, we frequently observe the following typical mistakes:

1. Selecting the Division based on habit, without analyzing the actual operating conditions.
2. Applying FEA without following the rules in Part 5, which invalidates the DBA approach.
3. Confusing peak stresses with membrane or bending stresses—a critical error in Division 2.
4. Underestimating fatigue assessment, especially in thermally active vessels.

Conclusion

ASME Section VIII Divisions 1 and 2 share the same ultimate goal: ensuring the integrity of pressure vessels.
However, they differ in their approach:

• Division 1: simplicity and high safety margins
• Division 2: structural optimization and advanced analysis in accordance with Part 5

Therefore, selecting the appropriate Division not only enhances design safety but also helps avoid unnecessary costs, excessive thicknesses, and incomplete analyses.
